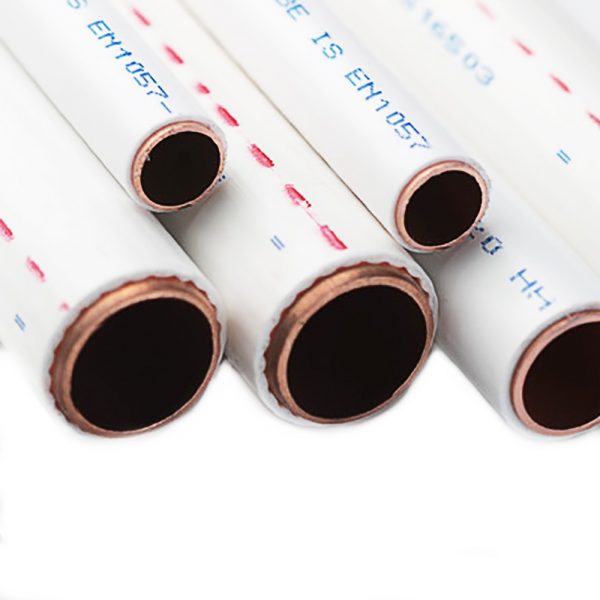

Pre-Insulated Copper Tube, KEMLAG PLUS
$ 91.43
KEMLAG PLUS insulation is internally grooved to entrap air and provide a thermal barrier. It is suitable for both hot and cold water plumbing and is useful in preventing condensation. PRODUCT CODE OUTSIDE DIAMETER (mm) WALL THICKNESS (mm) SAFE WORKING PRESSURE* WEIGHT/LENGTH** (kg/5.8m) LENGTH/BUNDLE LAGGED SIZES MASTER BUNDLE SIZE ANNEALED (kPa) AS SUPPLIED (kPa) KEMLINE (mm) KEMLAG (mm) T20942 15# 0.7 4500 5870# 1.63 100 √ √ 500 T14274 22# 0.9 3920 5120# 3.09 100 √ √ 300 T14312 28# 0.9 3060 3990# 3.98 50 √ √ 200 T14215 35 1.2 3270 5150 6.61 50 √ √ 100 T63593 42 1.2 2710 4270 7.98 50 √ √ 100 T21972 54 1.2 2090 3300 10.33 25 √ √ 50 T82474 66.7 1.2 1690 2660 12.81 25 √ 50 T62228 76.1 1.5 1850 2920 18.24 20 √ 50 T17265 108 1.5 1300 2040 26.04 10 √ 30 T84302 133 1.5 1050 1650 32.15 10 T82432 159 2.0 1170 1850 51.18 5 T20105 219 3.0 1280 2010 105.61 1 T20415 267 3.0 1050 1650 129.08 1 Resulting in suitable for different applications such as: Plumbing Gas Air conditioning Refrigeration Medical gas General engineering applications Comes in 3 different sizes: 15mm x 5.8m 22mm x 5.8m 28mm x 5.8m Share this:Click to share on Facebook (Opens in new window)Click to share on Twitter (Opens in new window)Click to share on WhatsApp (Opens in new window)Click to print (Opens in new window)Like this:Like Loading...
