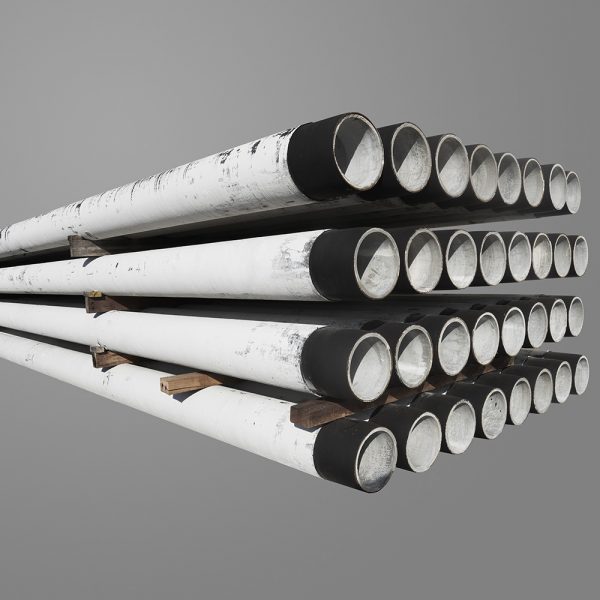

Mild Steel Cement Lined Pipe Spigot Socket End Bitumen Span TS 21827 Sirim

Nominal Diameter (mm) Outside Diameter (mm) Minimum nominal thickness(mm) Minimum thickness of concrete Thickness of bitumen enamel wrapping (mm) Steel pipe weight (kg/m) Hydraulic test pressure (steel 430) BS 534 SPAN TS BS 534 SPAN TS 100 114.3 3.6 3.6 6 3 9.8 9.8 70 150 168.3 3.6 3.6 6 3 14.6 14.6 70 200 219.1 4.0 4.0 10 3 21.2 21.2 70 250 273.0 4.0 4.0 10 3 26.5 26.5 56 300 323.9 4.0 4.0 10 3 31.6 31.6 48 350 355.6 4.5 4.5 13 3 39.0 39.0 49 400 406.4 4.5 4.5 13 3 44.6 44.6 43 450 457.0 5.0 5.0 13 3 55.7 55.7 42 500 508.0 5.0 5.0 13 3 62.0 62.0 38 600 610.0 6.3 6.3 13 3 93.8 93.8 40 650 660.0 6.3 6.3 19 3 102.0 101.6 700 711.0 6.3 6.3 19 3 109.5 109.5 34 750 762.0 6.3 6.3 19 3 117.0 117.4 32 800 813.0 7.1 7.1 19 3 141.1 141.1 34 850 864.0 7.1 7.1 19 3 150.0 150.0 32 900 914.0 7.1 8.0 19 3 159.0 178.7 34 1000 1016.0 7.1 8.0 19 3 177.0 198.9 30 1200 1219.0 8.0 10.0 19 3 239.0 298.1 32 1400 1422.0 8.8 10.0 25 3 307.0 348.2 27 1600 1626.0 10.0 11.0 25 3 399.0 438.1 26 1800 1829.0 11.0 12.5 25 3 493.0 559.9 26 2000 2032.0 12.5 14.2 25 3 623.0 706.6 27 2200 2235.0 14.2 16.0 25 3 778.0 875.5 28 2300 2337.0 – 16.0 25 3 – 915.8 26 2400 2438.0 – 16.0 25 3 – 955.6 25 2500 2540.0 – 17.5 25 3 – 1088.6 27 2600 2642.0 – 17.5 25 3 – 1132.6 26 2700 2743.0 – 17.5 25 3 – 1176.2 25 Share this:Click to share on Facebook (Opens in new window)Click to share on Twitter (Opens in new window)Click to share on WhatsApp (Opens in new window)Click to print (Opens in new window)Like this:Like Loading...
