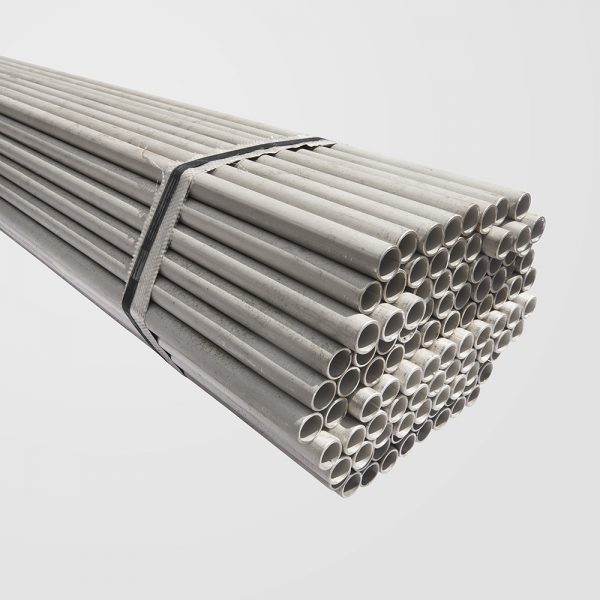

Stainless Steel 304 Sch10 Pipe, KANZEN TETSU

Nominal Pipe Size (NPS) (Inch) Outside Diameter (OD) (mm) Diameter Nominal (DN) (mm) Schedule 10S Schedule 40S Nominal Wall Thickness Weight (kg/m) Nominal Wall Thickness Weight (kg/m) TP304 / TP 304L TP316 / TP316L TP304 / TP 304L TP316 / TP316L 3/8 17.15 10 1.65 0.637 0.641 2.31 0.854 0.859 1/2 21.34 15 2.11 1.011 1.017 2.77 1.281 1.290 3/4 26.67 20 2.11 1.291 1.299 2.87 1.702 1.712 1 33.40 25 2.77 2.113 2.127 3.38 2.528 2.544 11/4 42.16 32 2.77 2.718 2.735 3.56 3.423 3.445 11/2 48.26 40 2.77 3.139 3.159 3.68 4.087 4.113 2 60.33 50 2.77 3.972 3.997 3.91 5.495 5.530 21/2 73.03 65 3.05 5.317 5.351 5.16 8.724 8.780 3 88.90 80 3.05 6.522 6.564 5.49 11.407 11.480 31/2 101.60 90 3.05 7.487 7.535 5.74 13.706 13.794 4 114.30 100 3.05 8.452 8.507 6.02 16.237 16.342 5 141.30 125 3.40 11.679 11.754 6.55 21.986 22.127 6 168.28 150 3.40 13.964 14.054 7.11 28.545 28.728 8 219.08 200 3.76 20.167 20.297 8.18 42.974 43.250 10 273.05 250 4.19 28.062 28.242 9.27 60.911 61.302 12 323.85 300 4.57 36.346 36.580 9.52 74.541 75.020 Permissible Variation In Dimension Dimension NPS Tolerance (mm) Outside Diameter (According To ASTM A999) 3/8″ to 11/2“ 0.4 , – 0.8 2″ to 4″ 0.8 , – 0.8 5″ to 8″ 1.6 , – 0.8 10″ to 12″ 2.4 , – 0.8 For ASTM A312, Wall Thickness NPS  Designator Tolerance, % From Nominal Over ( ) Under (-) 1/8″ to 21/2” incl. all t/D ratio 20.0 12.5 3″ to 18″ incl. t/D up to 5 % 22.5 12.5 3″ to 18″ incl. t/D > 5% 15.0 12.5 Where t = Nominal Wall Thickness D = Nominal Outside Diameter Of Pipe For ASTM A778 Tolerance = ± 12.5% From Nominal Share this:Click to share on Facebook (Opens in new window)Click to share on Twitter (Opens in new window)Click to share on WhatsApp (Opens in new window)Click to print (Opens in new window)Like this:Like Loading...
